Air Conditioning
12V Full Inverter

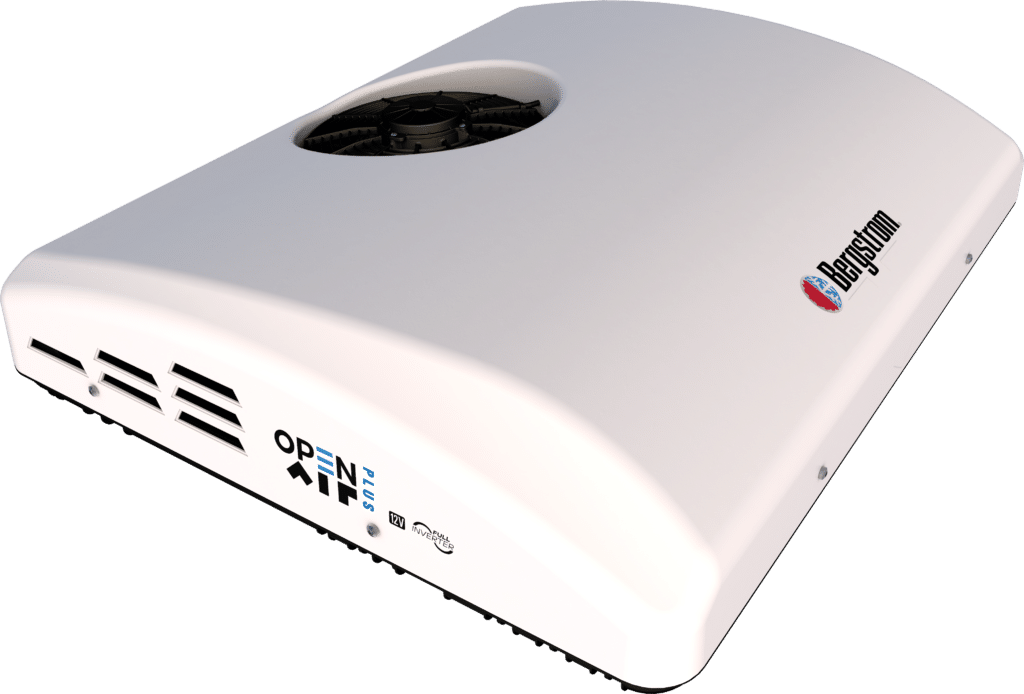

The innovative OpenAir is back, but better than ever, now reaching an even higher level as the OpenAir Plus. The new features of this redesign take comfort to the next level. Enjoy the best climate control for ultimate comfort wherever and whenever you want. Now even more efficient, more environmentally friendly, and with lower energy consumption.
The air conditioner with the best performance.
The technical features of the OpenAir PLUS 12V take the comfort and autonomy needed to enjoy better, more powerful air conditioning with lower consumption, better autonomy, and the highest quality to the next level.
The most competitive air conditioner on the market
A redesigned and manufactured device in Spain, with innovative technology and features and benefits that allow you to enjoy the perfect temperature wherever you go.
OpenAir PLUS 12V performs much better in the most demanding outdoor temperatures, providing consistent cooling with lower noise, significant energy savings, and increased equipment durability.
12V operation
OpenAir PLUS works with direct connection to the batteries without the need for power inverters.
Full Inverter Technology
All our components include inverter technology, electric fan, compressor and blowers.
Maintaining its exceptional design
Despite the many improvements, the equipment maintains its unique design thanks to an exceptional design. It remains the lowest equipment on the market (20 cm high), and has a very low aerodynamic coefficient.
Certified Quality
We have all the certifications based on ISO Standards that best suit our products: ISO 9001, ISO 14001 / IATF 16949.
2000W real power
It is the most powerful 12V device on the market, with the best energy efficiency, and configurable in two power levels: 1250W and 2000W.
Four mounting positions
The equipment can be installed in four different positions to adapt to all types of ceilings and available spaces.
Renewed interior design
Interior 4.5 cm color touch panel, with vertical flow regulation flaps, air orientation selector, and remote control with IR technology.
LED backlit interior panel
This new model allows you to adjust both the intensity and color of the LEDs from a wide variety of colors. It features RGB technology that allows for up to 16 colors.
WHAT TYPE OF RECREATIONAL VEHICLE DO YOU OWN? WE ADVISE YOU
OpenAir PLUS 12V continues to adapt to different types of motorhomes, campers, and caravans, with easy installation and also maintaining the four mounting positions according to your vehicle’s needs.
Featured Applications
Recreational Vehicles (RVs, Caravans and Campers): Ensures a comfortable temperature during trips or camping without relying on external power outlets up to 7 m in length.
Motorhomes
OpenAir PLUS 12V is designed for installation in 40x40 cm skylights, and is prepared to cool motorhomes and other recreational vehicles up to 7 linear meters.
Campers
The equipment can be easily installed in your camper van. Go to the camper kit section to see how to adapt it to your vehicle.
Caravans
OpenAir PLUS 12V is suitable for all types of vehicles that want to enjoy fresh air without the need for plugs. Consult your nearest distributor.
Advantages and news
The OpenAir PLUS 12V brings new features to enhance your home-on-wheels experience with a fresh, cool environment suitable for all types of needs.
New ecological gas
The new OpenAir PLUS features a new, more environmentally friendly gas.
New remote control
It comes with a new, easy-to-use remote control for easier use of the equipment.
LED lights
LED lights allow you to customize the look by selecting from various colors and shades.
electric diffusers
Its new interior flaps allow for better air distribution, achieving greater comfort.
an app to control it from your mobile
Control via the included remote control or intuitive mobile app (Android and iOS)
Better performance
Its new redesign allows for greater energy efficiency.
To access the new app, you can scan the QR code displayed on the screen or by pressing the button.
Download the ANDROID APP by clicking here.
Download the iOS app by clicking here.
You can control the equipment from your own mobile phone thanks to the intuitive app available on Android and iOS.
Related documentation
Night/Day
Roof
Horizontal
Double rotary
R-1234yf
Yes
12V
65 Decibels
1.250 W-2.000 W
10 A
(24ºC inside/ 30ª outside)
Configured at 1250 W: 16 – 39 A
Configured at 2000 W: 16 – 60 A
(L x A x H)
Interior console: 520 x 520 x 50 mm
Outdoor console: Base unit:786 x 986 x 200 mm
2 cable lengths: 8 meters and 10 meters
1250 W: 275 m3/h
2000 W: 370 m3/h
6 + automatic
ECO-AUTO-MAN
Recreational Vehicles
(RVs, Caravans and Campers)
Base Unit:
25,3 kg
Interior console:
5,295 kg
Yes
IR with Backlit LCD Display
Up to 7 m
RGB ambient light 16 colors
Complete your OpenAir Plus 12V
In addition to your OpenAir PLUS 12V equipment, and depending on the type and length of the vehicle, Bergstrom offers its customers wiring kits suitable for installing the equipment.
Wiring Kit
Consult your nearest distributors
You can get this latest product in Spain through our main distributors, GRUPO TRIGANO and GRUPO CORREDOIRA.
Find your point of sale and contact them for the installation of your new equipment.
external differences

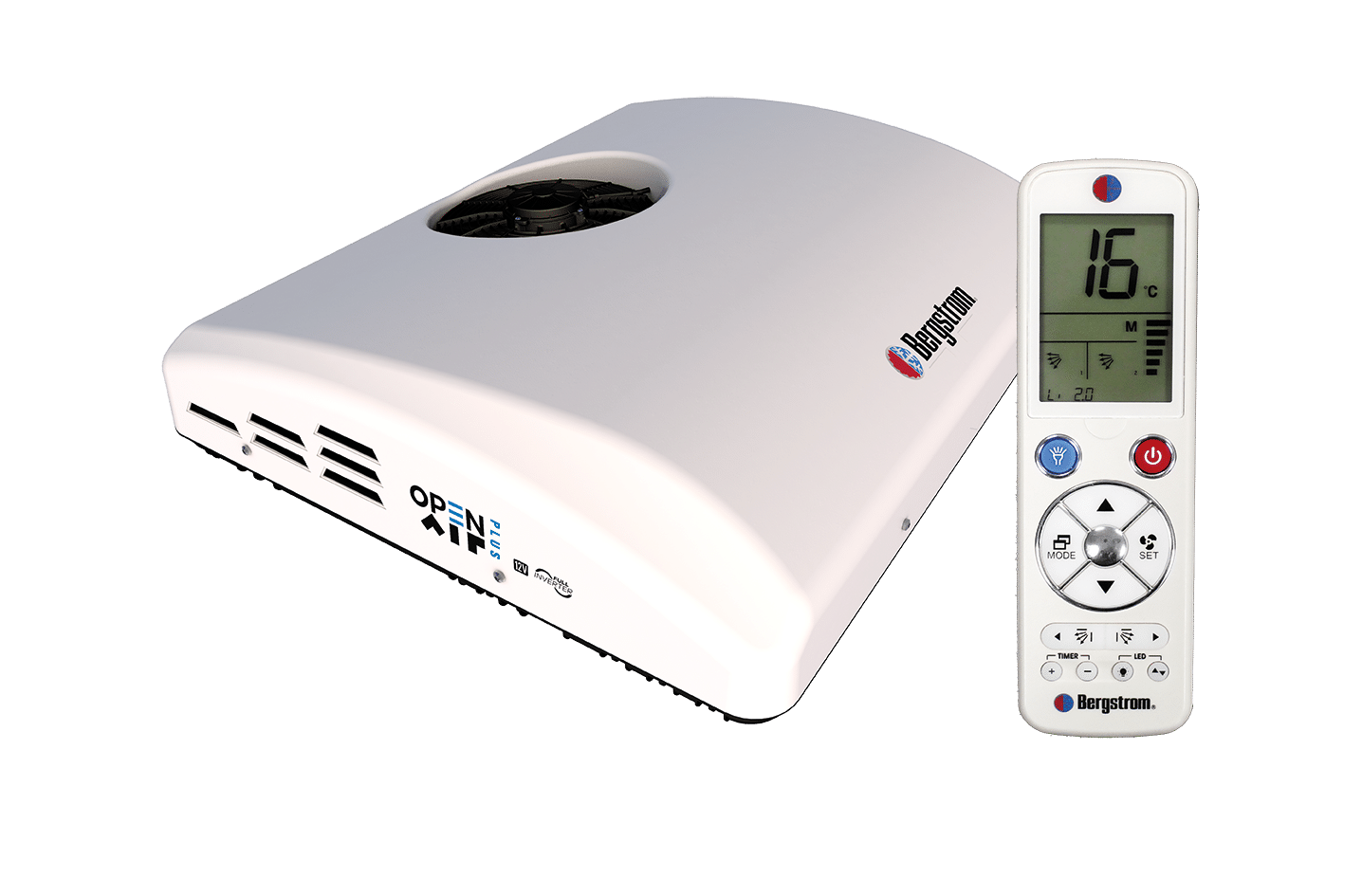

Remote control
The OpenAir PLUS features a redesigned, larger, more ergonomic, and intuitive remote control with an integrated display showing the temperature, mode, and speed in real time, giving users complete control of the unit to achieve the ideal temperature whenever they want.
Renewed internal console
At Bergstrom we have revamped the console, giving it a more modern, elegant and practical touch that improves daily interaction.
New electric diffusers
The new OpenAir PLUS features innovative electric diffusers that distribute airflow throughout the vehicle’s cabin, lowering the temperature in less time.
Ambient LED lighting
One of the many new features is the addition of LED lights, which allows for a more personalized and modern style for your equipment, with a wide variety of colors and shades to choose from.
internal differences
reduction of electricity consumption
One of the main factors when looking for an air conditioning accessory for caravans is energy consumption; this new OpenAir Plus brings an improvement in performance that is reflected in greater energy efficiency, reducing average consumption.
app to control from your mobile
Bergstrom has launched a new app that allows you to have complete control of your equipment from your mobile device. This app is available for both Android and iOS devices.
New ecological gas
The new eco-friendly gas makes this equipment more environmentally friendly.
Differences in specifications between the OpenAir Plus and OpenAir
1003755269
1003292018
12V
12V
*According to ISO 5151:T1
1.250 W
2.000 W
1.230 W
2.020 W
*According to ISO 5151:T1
16-39 A – 1.250 W
16-60 A – 2.000 W
14,4-29,8 A – 1.230 W
14,4-56,8A – 2.020 W
10 A
14,2 A
R-1234yf
R-134a
Self-regulating / Adjustable
Self-regulating / Adjustable
6 + automatic
5 + automatic
1.250 W-2.000 W
1.230 W -2.020 W
10 A
14,2 A
275 m3/h-1.250 W
370 m3/h-2.000 W
210 m3/h-1.230 W
260 m3/h-2.020 W
986 x 786 x 200 mm
25,3 kg
25,3 kg
520 x 520 x 50 mm
520 x 520 x 45 mm
5,295 kg
5,69 kg
ECO-AUTOMATIC-MANUAL
ECO-AUTOMATIC-MANUAL
Recreational vehicles
(RVs, Caravans and Campers)
Recreational vehicles
(RVs, Caravans and Campers)
4
4
1.2 – maximum capacity 1.230 W
2.0 – Maximum capacity 2.000 W
1.2 – maximum capacity 1.250 W
2.0 – maximum capacity 2.020 W
Touch button
Automatic flaps
IR
IR
Yes (Bluetooth iOS and Android)
Not available
Yes (Bluetooth iOS and Android)
Not available
Yes (from 30 minutes to 18 hours)
Not available
Yes (from 30 minutes to 18 hours)
Yes (from 15 minutes to 9 hours)
Yes – RGB multicolor
Yes
Available as an accessory
Available as an accessory
Available as an accessory
Available as an accessory
400 x 400 mm
400 x 400 mm
Up to 7 m
Up to 7 m
From 30 mm to 60 mm
From 30 mm to 60 mm
Calculate the estimated battery consumption and life of your OpenAir Plus
Find out how much it consumes and how long its battery lasts.
Check your battery consumption and estimated lifespan of your caravan air conditioning unit right now!
Calculate the energy consumption and battery life of your motorhome while using the Open air plus 12V full inverter
Saving
Results: *Remember that the result is approximate and assumes optimal conditions..
For solar panels, a constant charging current of 10 A is considered for 150 W panels and 20 A for 240 W panels, without taking other factors into account.
Meet our incredible evaporative equipment
The only evaporative cooler for motorhomes that allows you to choose the air temperature.
